Hey guys,
I wanted to put up a few pictures of a recent Jockey Box build that I completed. I haven't seen many of these is Europe so far, but they are fairly common in the US.

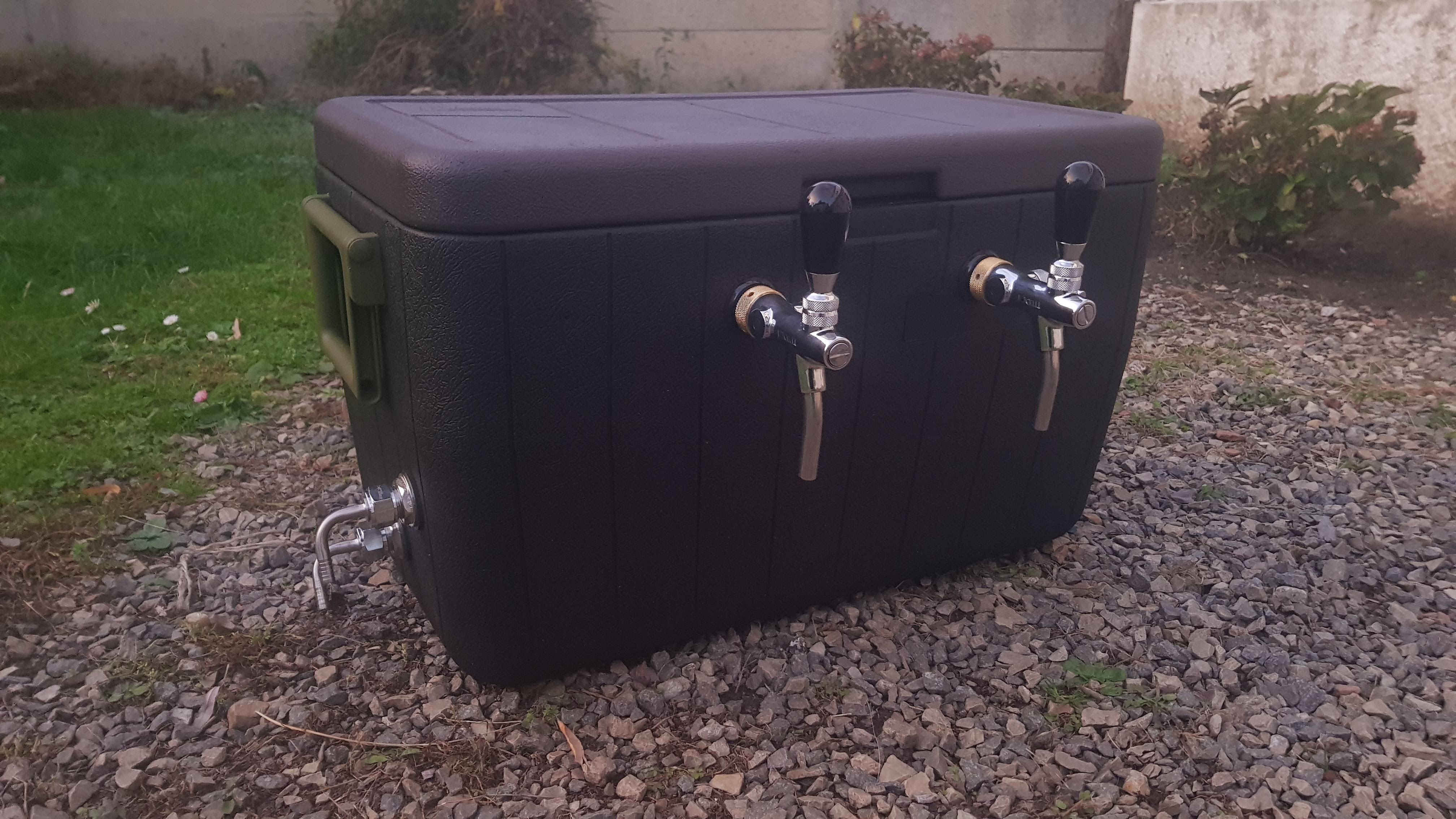

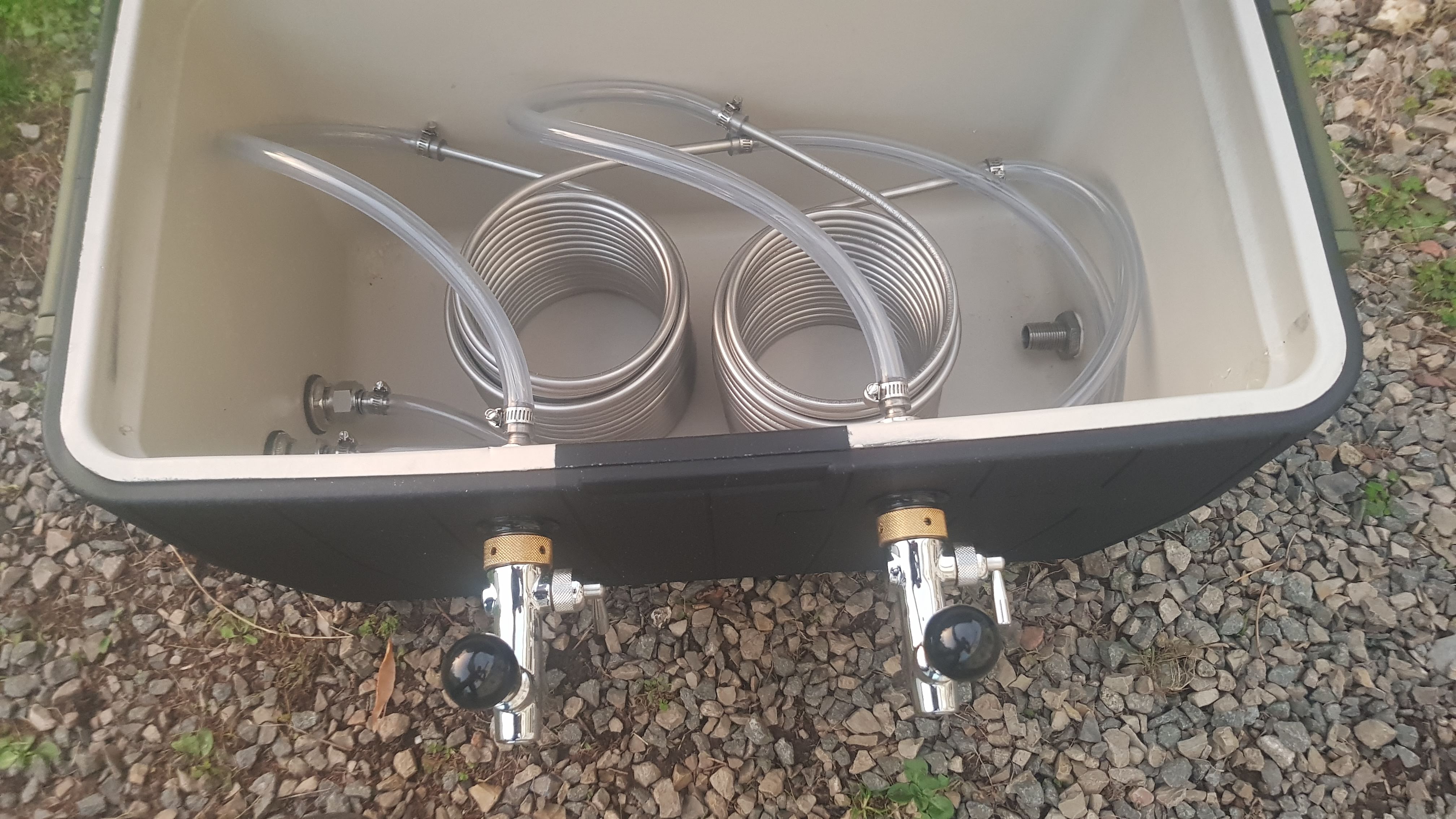

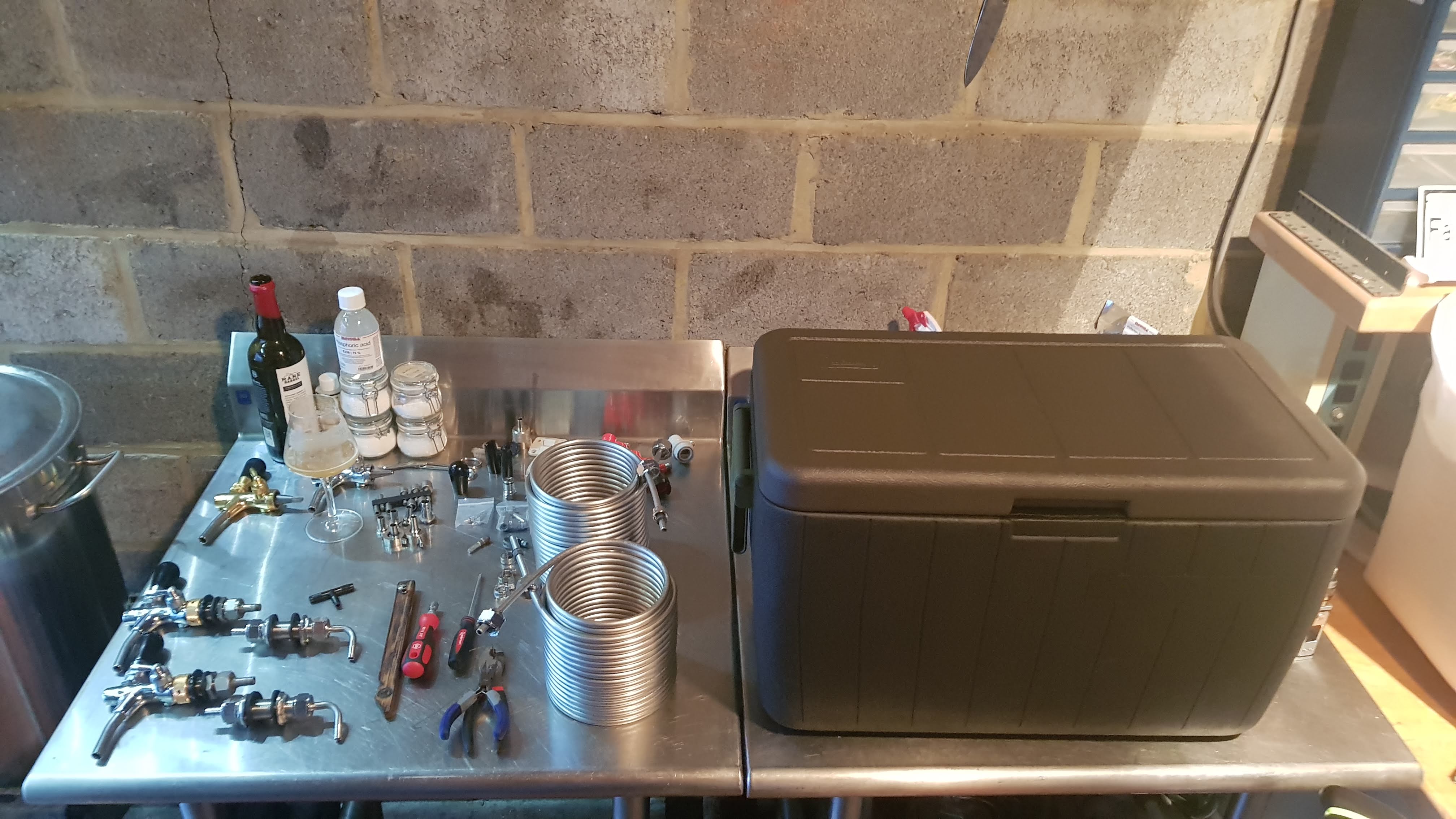

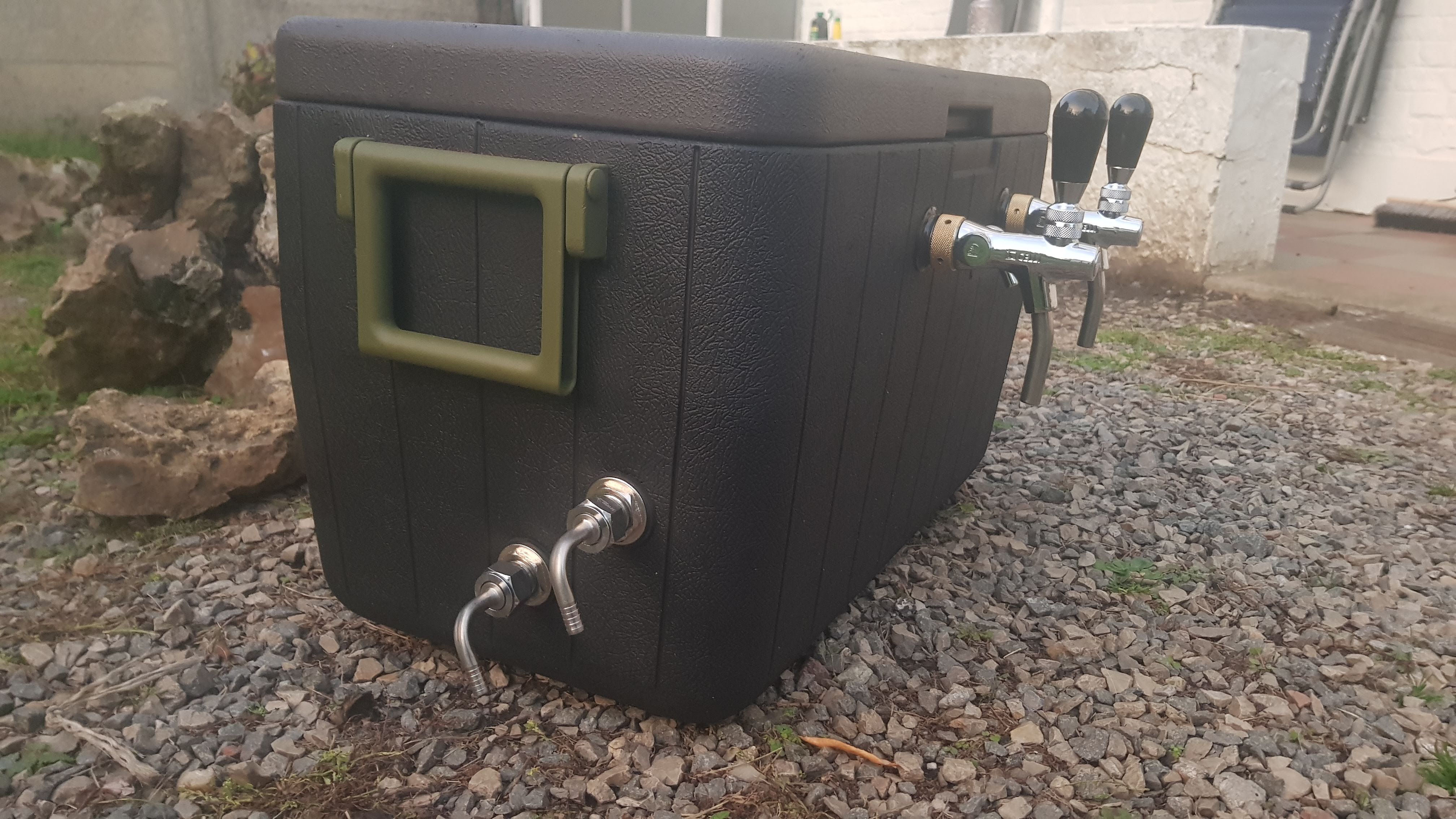

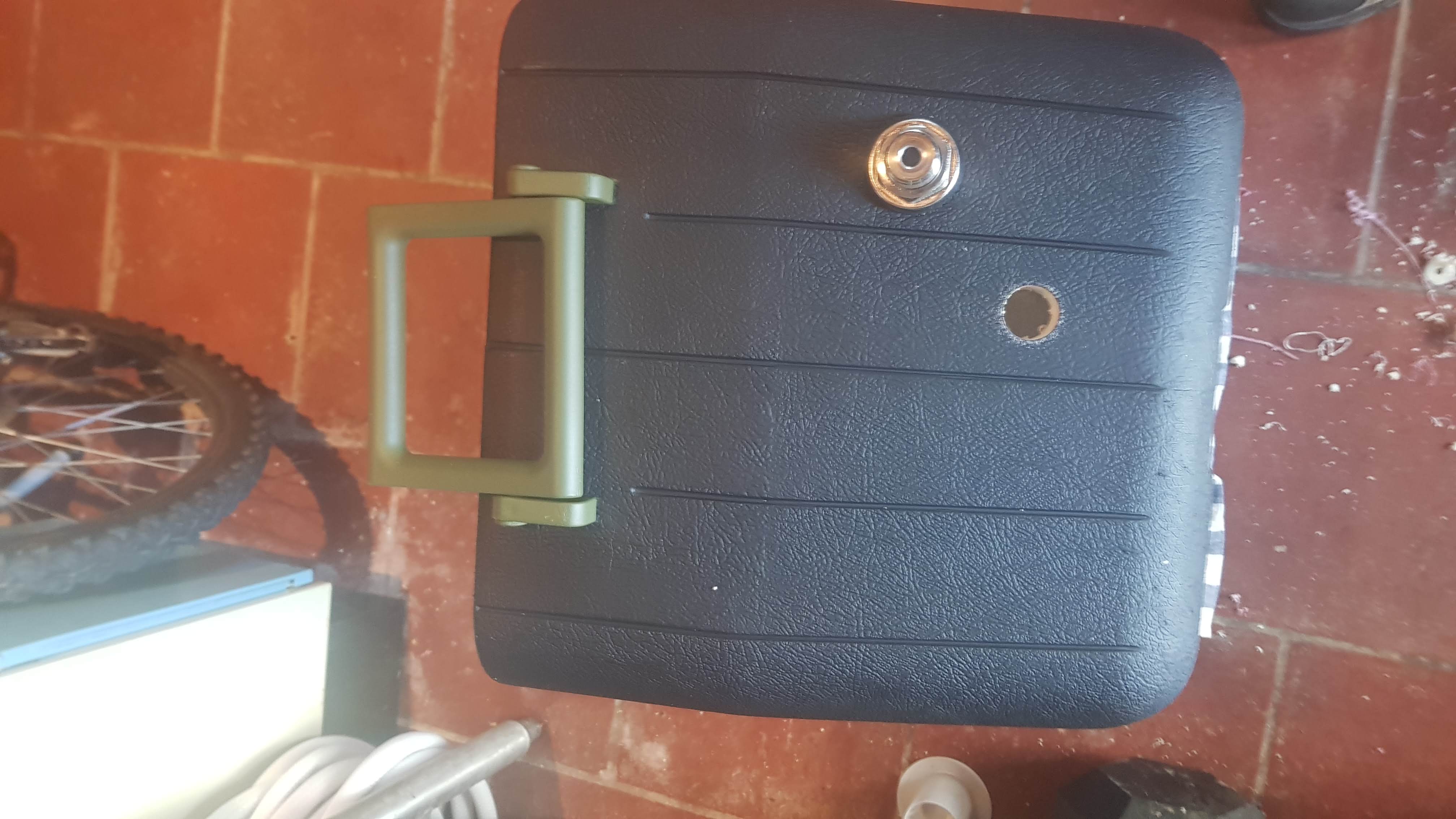

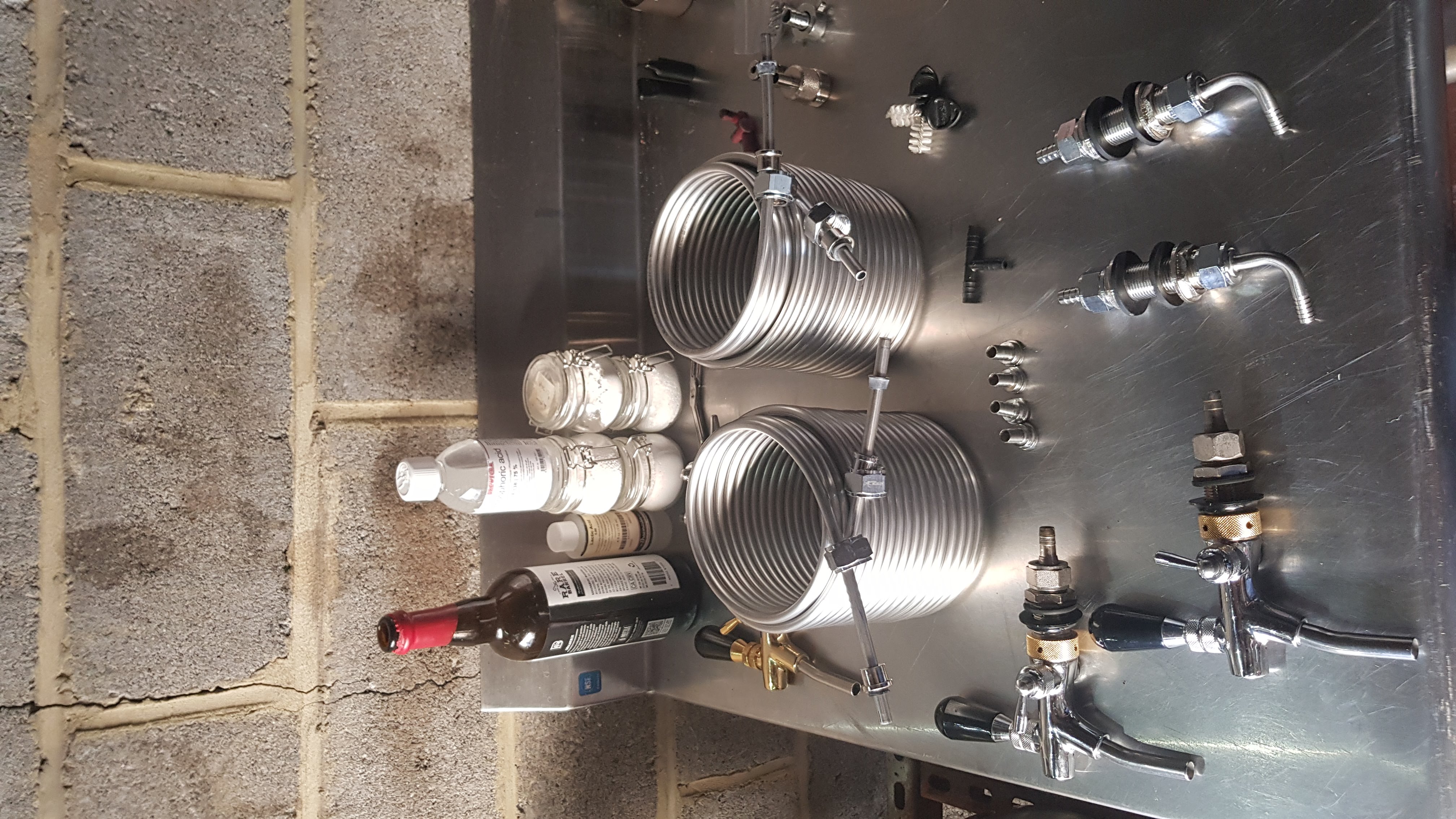

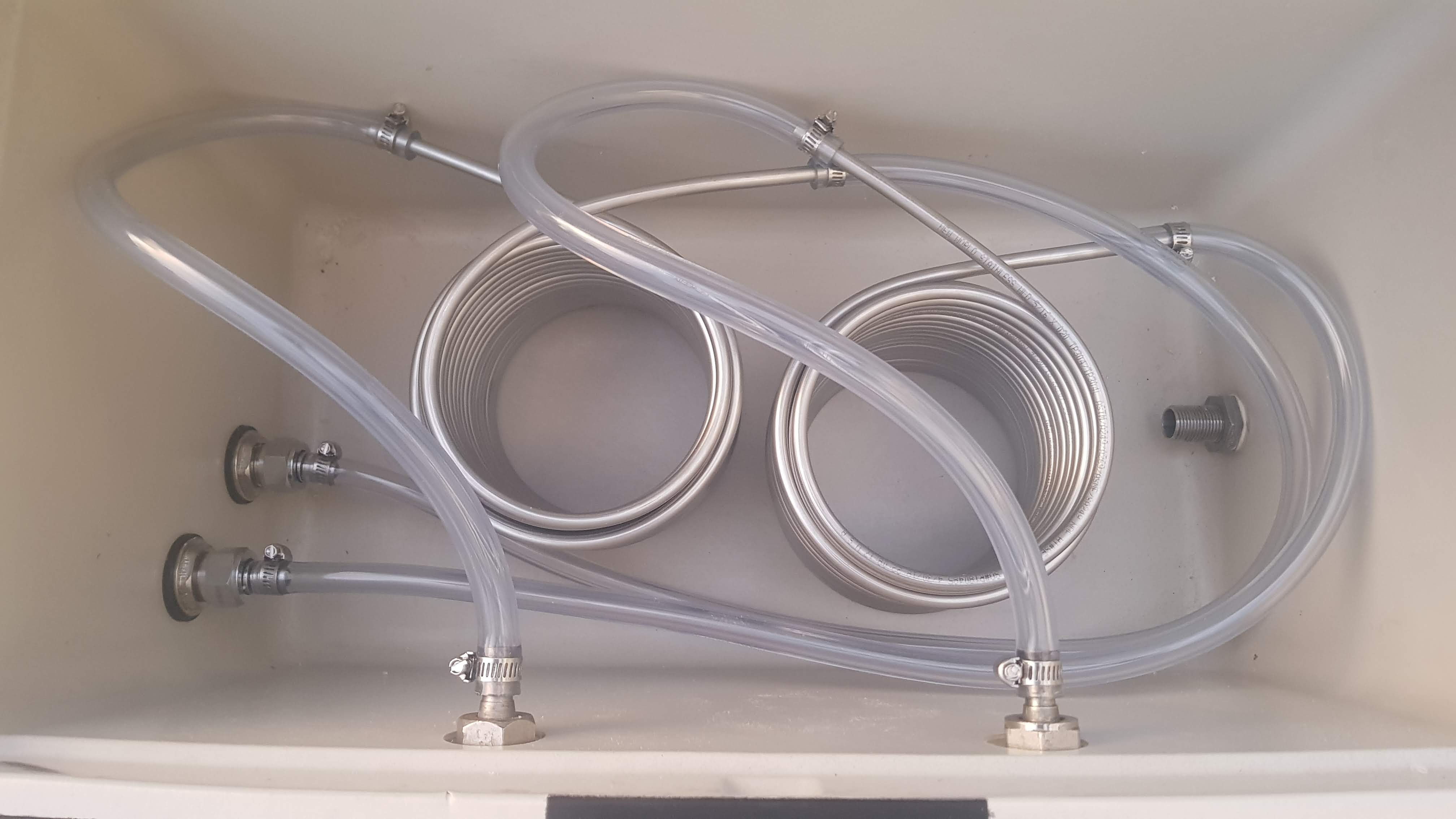

The build consists of a ~48L Cooler, with two 50' (15m) 5/16" ID Stainless Steel coils. Simply attach your beer lines to the hose barbs on the side of the cooler, connect CO2 to your keg, adjust serving pressure to compensate for the extra resistance given by the coils (serving pressure = 1.4 bar), fill with ice, and serve cold beer, anywhere.
Jockey Box Build
Moderator: Pascal
Jockey Box Build
- Attachments
-
-
-
Re: Jockey Box Build
well done !
do you have a ballpark estimate of the beer volume in such a dispense line ?
do you have a ballpark estimate of the beer volume in such a dispense line ?
Re: Jockey Box Build
Never seen it in Belgium but it's great indeed.
You're the first one!
You're the first one!
Re: Jockey Box Build
Based off of cylinder volume calculations, total approximate beer volume inside the coils is 0.75L.regrigore wrote:well done !
do you have a ballpark estimate of the beer volume in such a dispense line ?
Also, I used 8kg of ice, and it stayed in the cooler for 3 full days
-
illomenbrewery
- Posts: 34
- Joined: 25 Oct 2017, 06:21
- Location: Jurbise
- Contact:
Re: Jockey Box Build
Looks good osh... Can't wait to see the finished product in person.
Sent from my ANE-LX1 using Tapatalk
Sent from my ANE-LX1 using Tapatalk
Re: Jockey Box Build
Énorme frigo-box chez techniba (Bastogne). Énormément chers aussi..
60 et 110 l
60 et 110 l
Re: Jockey Box Build
Comment ça se fait que c'est aussi cher ?
